Fully Equipped Ports with Rich Scalability

Main ports: HDMI2.0, USB OTG, 2xUSB2.0 Host, Optical, GIGABIT LAN, RS232, TF Card, IR, Power key

Extended ports: LVDS, eDP, MIPI DSI, MIPI CSI, MIPI CIF camera, PCIe, I2C, UART, ADC, GPIO, I2S, VFD, Speaker,

microphone array and other ports. Various ports can be used to external device control and expansion

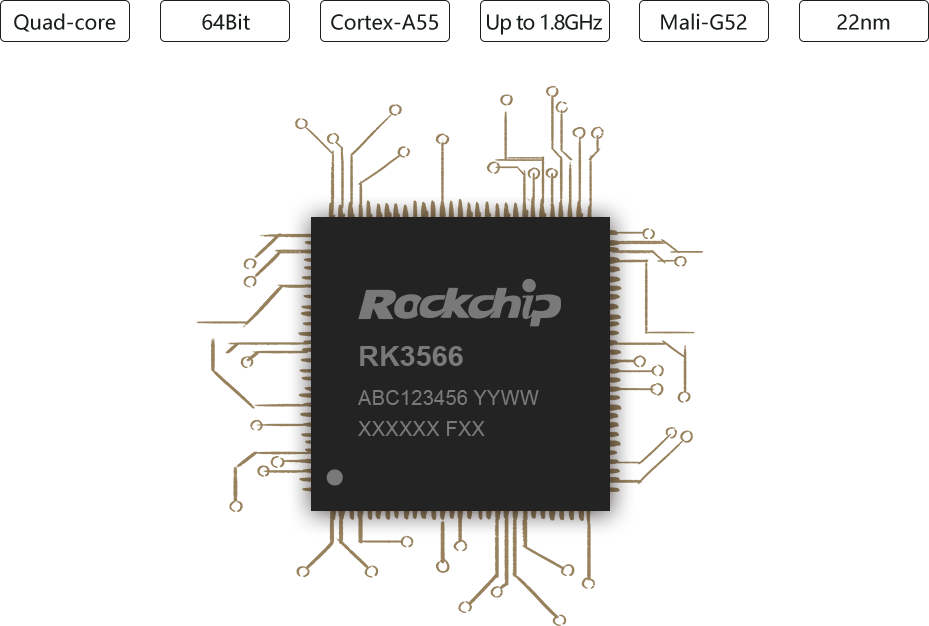

Quad-core 64-bit Cortex-A55 CPU

The CPU is a Quad-core 64-bit Cortex-A55, and the CPU clock speed up to 1.8GHz

GPU adopts dual-core architecture, ARM Mali-G52 2EE supports OpenGL ES 1.1/2.0/3.2,

OpenCL 2.0, Vulkan 1.1 and internal high-performance 2D acceleration hardware

Performance is greatly improved and 8K video decoding is supported

With 22nm advanced technology, lower power consumption

GPU VPU NPU Cooperative Accessing

Perfect cooperative accessing with dual-core architecture GPU, high-performance VPU and effective NPU

VPU can support 4K 60fps H.265/H.264/VP9 video decoding and 1080P 100fps H.265/H.264 video encoding

The build-in NPU supports INT8/INT16 hybrid operation and has strong compatibility

Network models based on a series of frameworks such as TensorFlow/MXNet/PyTorch/Caffe can be easily converted

Along with the popularization of UHD large-screen TVs, hardware upgrade is imminent

4K UHD mini PC M6 has a high-performance GPU capable of decoding 8K video maximum

HDR10/HDR HLG, HDR2SDR/SDR2HDR are supported

Images can be clear under backlight and harsh light condition

Maximum 8GB Memory and Full Link ECC

Standard 4GB memory, extended 8GB memory maximum, width up to 32Bit

Full link ECC makes data more secure and reliable to meet the requirements of large-memory product application scenarios

Larger application operating space facilitates fast and smooth playback response

Full-speed WiFi6 Protocol and Gigabit Ethernet

WiFi6 2.4GHz/5GHz dual-band 802.11a/b/g/n/ac/ax protocol is supported

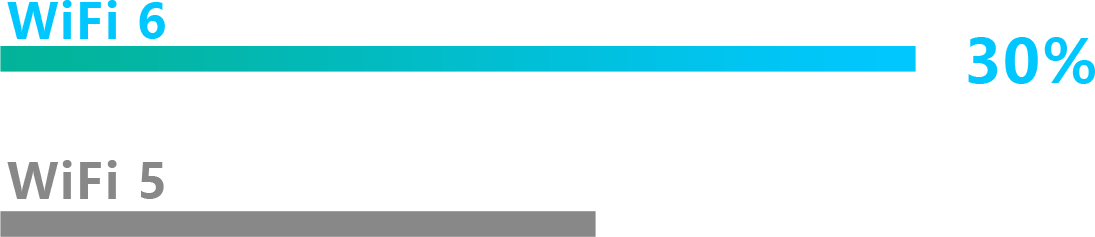

30% faster than the previous generation WiFi5

Downward compatible with WiFi5 (optional)

Supporting BT5.0 and 1000Mbps high-speed Ethernet

Professional ISP and Encoder for Video Call

There is a built-in ISP in M6 processor which supports up to 8M image processing capabilities

Good camera image quality greatly improve the video call experience

Multi-channel 1080P high-definition video calls is supported

Efficient ROI encoding comes with high frame rate and short delay

Voice Control and Man-machine Dialog

M6 microphone array input port and high dynamic noise reduction algorithm achieve precise voice control

Human voice can be identified even in noisy environment

Independent NPU for Various Scenarios

M6 has independent 0.8T NPU processing built in, thus its AI computing is strong and powerful

It is the first to support the function "canvas in the air" in the industry

Which can be widely used in AI scenarios like intelligent interaction,

face recognition, online conference, face tracking, body recognition, gesture recognition etc.

M6 comes with ePTZ function, which brings users a better experience in video call scenarios

Brand-new AI interaction logic will make the traditional TV be a smart screen

More intelligent applications are supported including 5G 4K real-time playback,

video conference system, smart teaching, office applications, dual screen digital signage,

facial recognition payment systems, edge computing, shopping mall guides, leisure and entertainment,

smart dining, airport information, intelligent robots, security systems, industrial control,

outdoor advertising and multi-screen applications etc.

Support Multiple Operating System

Android 11.0, Ubuntu 18.04, Buildroot+QT, Station OS operating systems, and ePTZ function are supported
