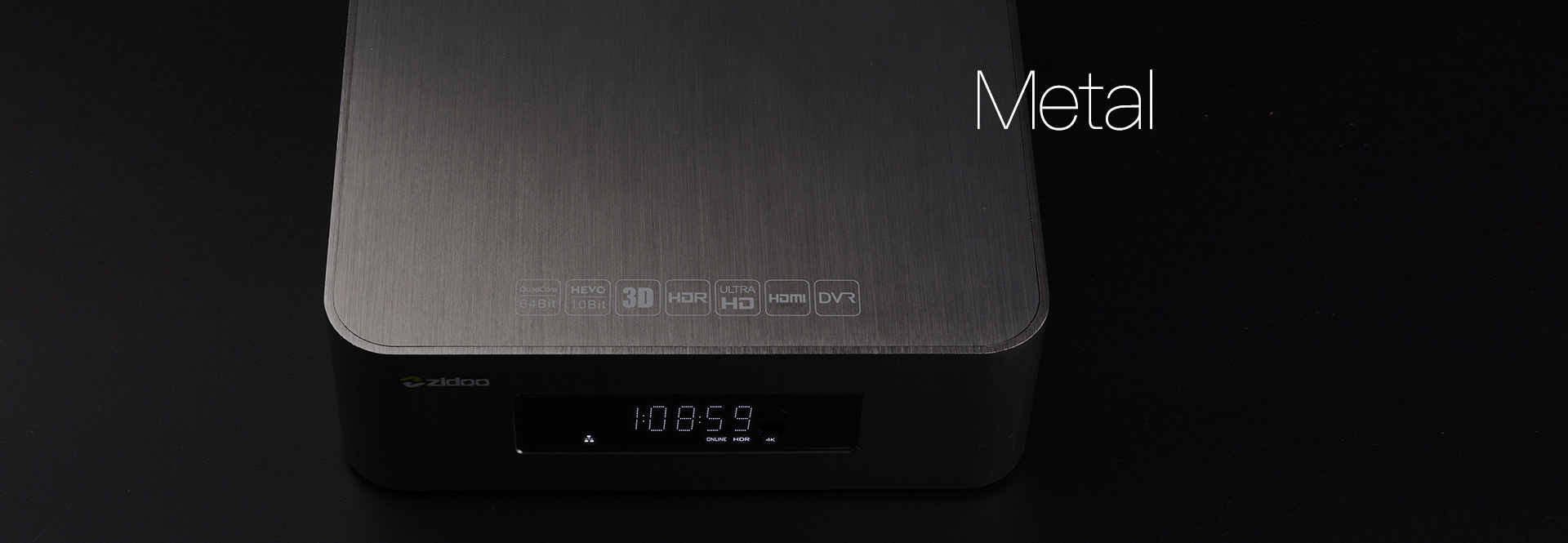

Appearance

X10 spec
X10 spec
X10 spec
X10 spec
X10 spec
X10 spec

Remote Control

X10 spec

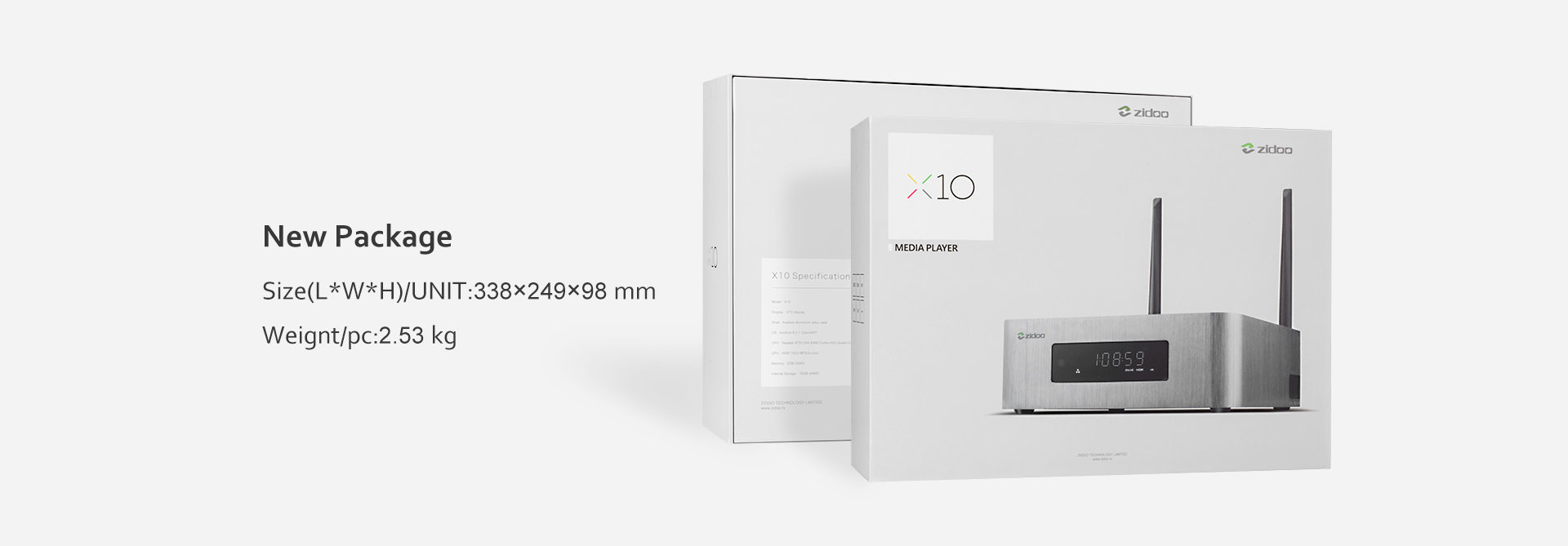

Package

X10 spec
X10 spec

Carton

X10 spec

Specification

Model X10
Material Space Aluminium
Display VFD display
Shell Aviation Aluminum alloy case in smoke-colored
OS Android 6.0 + OpenWRT(NAS) dual system run simultaneously
CPU Realtek RTD1295 ARM Cortex-A53 Quad-Core with floating-point unit and NEON SIMD engine embedded
GPU ARM T820 MP3(3-core)
Memory 2GB DDR3
Internal Storage 16GB eMMC
Wifi Connectivity IEEE 802.11a/b/g/n, 802.11AC,4.900 GHz ~ 5.845 GHz (5.0 GHz ISM Band) RTK8821 dual-band WIFI
Ethernet 1*RJ-45 Ethernet Jack (10/100/1000Mbps)
Bluetooth BT4.0
HDMI Out HDMI with HDCP 2.2 output, Support 4K@60fps Support HD Audio(7.1CH), support 23.976 and 29.94
HDMI In HDMI with HDCP 2.2 input, support PIP, HDMI IN stream recode and stream output via UDP etc...
Video decode HDR, 10-bit HEVC/H.265 up to 4K @ 60fps, VP9 up to 4K @ 60 fps, H.264 up to 4K @ 24 fps, automatic frame rate switching
Audio decode Support HD audio(7.1ch) decode and passthrough Redesigned Native player,Blu-ray better compatibility,Powerful subtitles ,Support MVC ISO,MVC MKV. Built in ZDMC
USB 1 * USB3.0
2 * USB2.0
*External power needed if USB connects to over 1TB mobile HDD
Power DC 12V/3A
other interface 1 * TF card reader SD card interface . Support 1GB/2GB/4GB/8GB/16GB/32GB
1 * IR receiver
1 * AV OUT Composite video and audio port (Cvbs output)
1 * OPTICAL (2CH, 5.1CH)
2 * External high-gain Antenna
1 * HDD BAY
1 * VFD display (with LED light)
What's in the box: 1 * Media Player
1 * Remote control
1 * HDMI cable
1 * Power adapter
1 * User manual
1 * Standard A/V cable
